Topology-Aware-Bronchial-Tree-Segmentation-via-Skeleton-Based-Branch-Parsing

Topology-aware bronchial tree segmentation from CT. Airway masks are extracted using TotalSegmentator, then skeletonized with Kimimaro. Branch points are detected and parsed using rule-based anatomical constraints to produce consistent airway labeling and multi-segment outputs for 3D Slicer.

🫁 Bronchial Branch Labeler

Automatically parse an unsegmented bronchial tree into anatomically meaningful airway branches using skeleton-based topology analysis.

---

📌 Overview

This project provides a lightweight, non-deep-learning pipeline to convert a binary bronchial tree into structured anatomical segments (e.g., Trachea, RMB, RUL, B1–B10).

Unlike neural network approaches, this method is:

• Deterministic
• Topology-aware
• Interpretable (based on graph structure and geometry)

It is particularly useful for:

• Airway anatomy analysis
• Preprocessing for radiology AI pipelines
• Generating labeled airway maps from CT-derived segmentations

---

🧠 Pipeline

CT scan (.nii.gz) ↓ TotalSegmentator ↓ Extract bronchial tree (binary mask / Segment_1) ↓ Skeletonization (kimimaro) ↓ Graph-based branch tracing ↓ Anatomical classification (B1–B10) ↓ Export:

.seg.nrrd (3D Slicer compatible) .txt (segment names)

---

🖼️ Demo

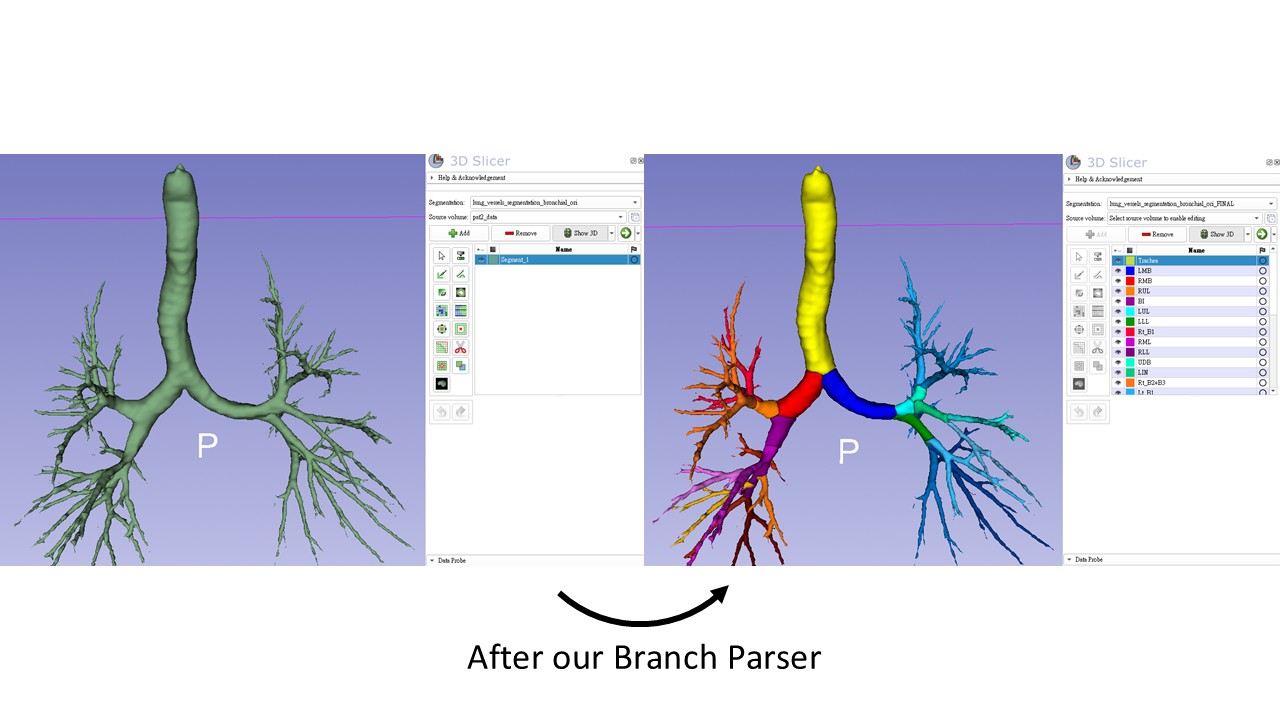

Bronchial branch parsing

Below shows how the algorithm converts an unsegmented bronchial tree into labeled anatomical branches:

---

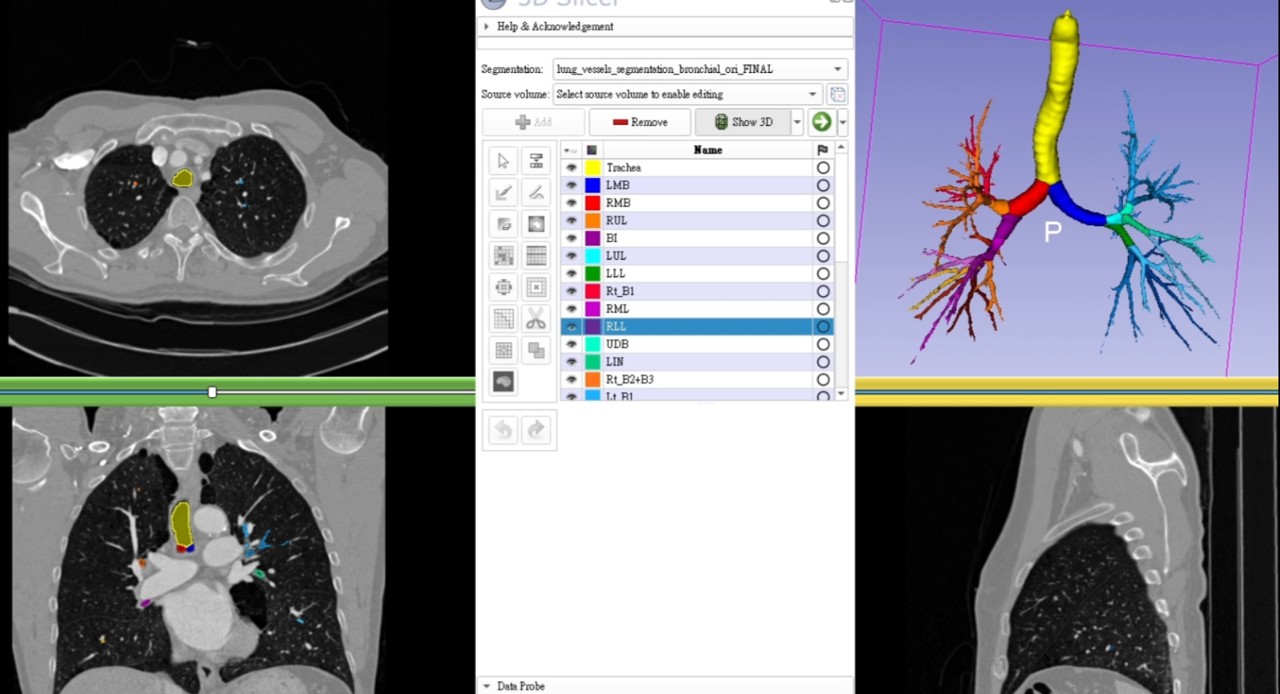

Clinical visualization benefit

The colorized airway branches significantly improve interpretability when reviewing CT in different views:

• Axial
• Coronal
• Sagittal

This allows faster identification of bronchial segments (e.g., B1–B10) during image navigation.

🎥 Video demonstration:
https://youtu.be/xXrjiTo91TU

---

⚙️ Installation

pip install numpy scipy scikit-learn nibabel pynrrd kimimaro

🚀 Usage

python bronchial_branch_labeler.py ^
  --input "D:/LyNoS_dataset/Benchmark/Pat2/lung_vessels_segmentation/lung_vessels_segmentation_bronchial_ori.seg.nrrd" ^
  --ct "D:/LyNoS_dataset/Benchmark/Pat2/pat2_data.nii.gz" ^
  --output "D:/LyNoS_dataset/Benchmark/Pat2/lung_vessels_segmentation/bronchial_BRANCHES.seg.nrrd"

Arguments

Argument Description –input Binary bronchial tree segmentation (.seg.nrrd) –ct Original CT volume (.nii.gz) for spatial reference –output Output segmented airway file (.seg.nrrd) –ap-sign (optional) Set to -1 if anterior–posterior direction is flipped

📤 Output

1. Segmentation file *.seg.nrrd Compatible with 3D Slicer Each airway branch is a separate segment layer
2. Segment name file *_segment_names.txt Contains ordered anatomical labels
3. Console output ```bash === FINAL SEGMENTS ===
4. Trachea (bid=0)
5. LMB (bid=1)
6. RMB (bid=2)
7. RUL (bid=3) …
8. Lt_B10 (bid=38) ```

🔬 Method Highlights

Skeletonization via kimimaro Graph traversal (BFS, shortest path) PCA-based orientation estimation Branch classification using geometric heuristics Cranial direction → B1 Anterior/Posterior → B2 / B3 Spatial clustering for distal branches Topology-preserving labeling

No deep learning model is used.

⚠️ Notes

Input bronchial tree should be reasonably clean (e.g., from TotalSegmentator) Extremely noisy segmentations may affect branch detection Left B7 is not defined (consistent with anatomical convention)

📄 License

MIT License

🙌 Acknowledgement

TotalSegmentator for whole-body CT segmentation kimimaro for skeletonization

💡 Future Work

Support for airway variants Integration with radiology AI pipelines Quantitative airway analysis (diameter, angle, topology metrics)
